TUTCO flexible heat pad silicone rubber heater with UL certificate
● Temperature:
Continuousworkingtemperature 200℃
Maxworkingtemperature 220℃
● Electricalcharacteristics
Capacitytolerance ±10%
Insulationresistance DC500V,>1000MΩ
Dielectricstrength 1500VAC/&1min
● Sizeofsizeheaters
Max.W*L 800mm*3000mm
Min.W*L 25mm*50mm
Thickness 1.5mm(orcustomize)
Tutco provides UL certificated silicone heater products for all kinds of applications, for lab equipment, medical equipment, Auto batter warming & industral application. etching & wound style customized designed per needs.

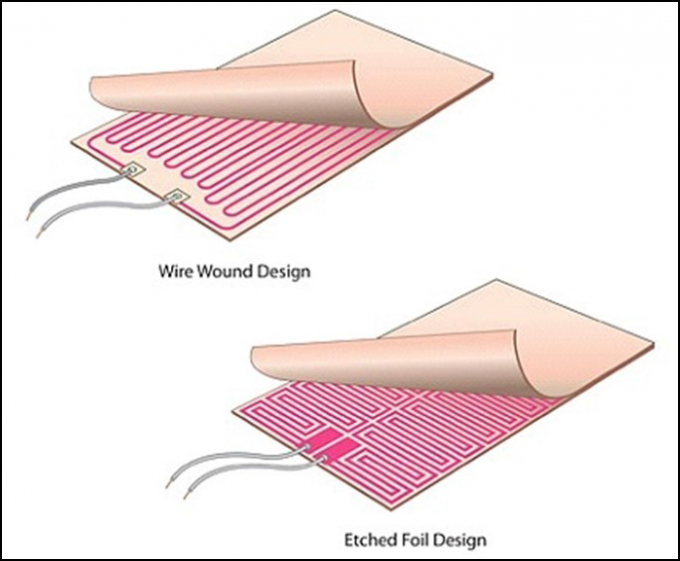

TUTCO has two types of silicone heaters,Type W (Wire Wound Design) and Type E (Etch design).
Type W: heating element is alloy resistance wire, with simple process, suitable for low watt densities,
normal precision, and over a big range of various thickness.
Type E: heating element is alloy foil ,suitable for low watt densities, special design for various applications
Silicone rubber heater application
- Silicone rubber band heater can be used in damp, no explosive gas atmosphere, industrial equipment pipelines, heat preservation for can and barrel.
- Silicone rubber heater can be used as a frozen prevention, air conditioner compressor, assisting heating of electrical equipment3 medical devices ( such as blood analyzers, test tube heater, medical care, body slimming belt corset compensation such as heat )
- Silicone rubber heater can be used as medical equipment and medical care (such as blood tube heater, blood analyzer, heat supplementary for corset and waistband
Silicon heater is safe, flexible, lightweight, even heating, convenient mounting, it’s used for heating any irregular surface on a wide field of heat preservation, antifreeze, preheating, fog etc.
Why TUTCO
- Heater is UL listed for Outdoor Applications
- All of the limit controls in all TUTCO duct heaters are automatic resets or are manually resettable. There are no devices that have to be replaced when tripped.
- In a horizontal airflow application, the airflow direction is not specific; it can go either direction without any modification.
- With our wire rack element suspension system, the heater coil is less susceptible to airflow shading and allows a very small pressure drop across the coils.
- All TUTCO duct heaters carry a zero clearance rating for installations into ducts.
