Stainless Steel Mica Band Heater/Heating Element

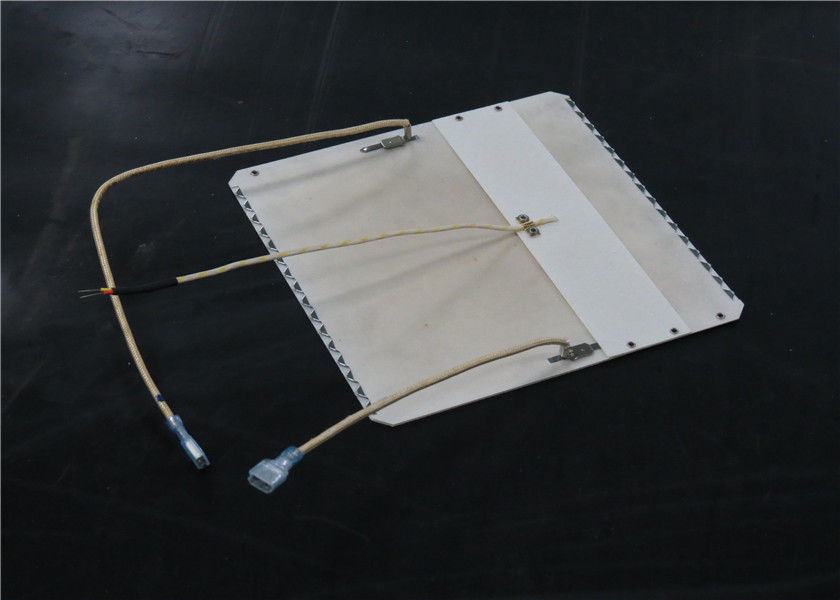

Tutco designs & Builds excellent mica heaters for all application, especially for lab equipment, medcial equipment and all kinds of surface heating applications. A custom mica surface heater for heat press equipment that replaced the heating element on the existing product line.
Mica band heaters are widely used on operations involving heating of cylindrical surface and are
manufactured in a full range of standard construction variations, physical dimensions, electrical rating,
and a complete arrangement of screw terminals and lead terminations.
These standard band heater variations and terminations do not represent the extent of our capabilities.
TY’s engineering staff, with many years experience in heat processing and temperature control
applications, can assist you in designing the right band heater for your specific applications.
| Typical applications |
| Plastic injection molding machines |
Plastic extruders |
| Oil reclamation equipments |
Food and candy extruders |
| Drum heating |
Extrusion dies |
| Holding tanks |
Blow molding machines |
| Vending machines |
Barrels and heads |
| Food service warming |
Autoclaves and sterilizers |
| Metallurgical analyzers |
Fluidized Beds |
| Hot runner molds |
Pulp and paper processing equipment |
| Construction Features |
| Built-in bracket for clamping |
Available two-piece design |
| Unbreakable screw terminals |
Temperature up to 480 C |
| Stainless steel built-in strap |
Flexibility to incorporate holes and cutouts |
| |
|
| Performance ratings |
| Maximum Temperature |
482C |
| Nominal Watt Density |
3-7W/cm² |
| Maximum Watt Density |
Dependent on heater size and operating
temperature
|
| Physical size construction limitations |
| Minimum width |
25mm |
| Width tolerance |
1.6mm |
| Minimum inside diameter |
30mm |
| Electrical rating |
| Maximum voltage |
480V |
| Resistance tolerance |
+10%, -5% |
| Wattage tolerance |
+5%, -10% |
